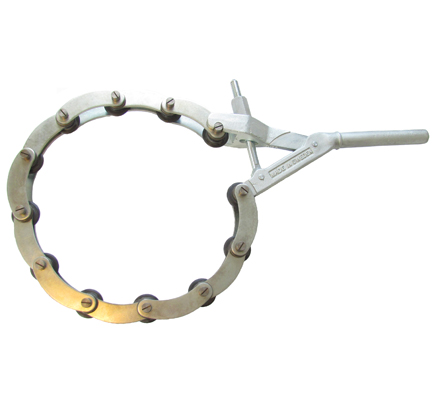

LINK PIPE CUTTERS TYPE D

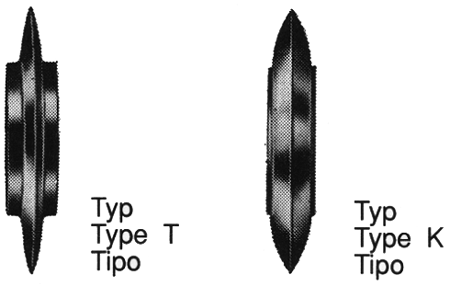

FROMAX link pipe cutters type D have the same design as type K but are also equipped with rollers. All kind of pipe can be cut with these cutters. Type D are supplied as standard with wheels type T for cutting ductile, steel, stainless and similar pipes. To cut harder pipes such as cast iron, cement ceramics and similar a special FROMAX wheel type K must be used. The tool has effective rust protection.


Technical data
Art. no. Type Capacity Max. thickness for steel pipe (mm) Weight (kg)
140 D6 2,5"-6"
60-150 mm
9 9,00
141 D8 2,5"-8"
60-200 mm
9 10,00
142 D10 2,5"-10"
60-250 mm
9 11,00
143 D12 2,5"-12"
60-300 mm
9 12,50
144 D14 6"-14"
150-350 mm
9 15,00
145 D16 6"-16"
150-400 mm
9 16,00
146 D20 6"-20"
150-500 mm
9 19,00

Instructions for D6-D12 Katalog
Instructions for D14-D20 Katalog
