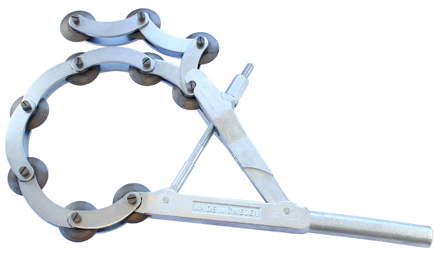

LINK PIPE CUTTERS TYPE K
For cutting of various dimensions of pipes without the need to remove links. The links are adjustable laterally whereby any glitches can be eliminated. As a standard Type K Link Pipe Cutters are supplied with wheels for cutting cast iron, ceramics, cement and similar pipes. For cutting steel, copper and aluminium pipes the type T cutting wheel should be used. The K4 is specially made for work in confined spaces, the tool only needs 22 mm clearance to walls and ceilings. For the sizes K14-20 Fromax cutting wheel K20 XL is available as an option. It has an extra depth of cut and is suitable for thick walled cement or cast-iron pipes.

Technical data
Art. no. Type Capacity Weight (kg)
119 K4 2"-4"
60-110 mm
2,00
120 K6 2"-6"
60-150 mm
4,00
121 K8 4"-8"
100-200 mm
7,00
122 K9 6"-9"
150-225 mm
8,00
123 K10 6"-10"
150-250 mm
8,50
124 K12 6"-12"
150-300 mm
9,00
125 K14 6"-14"
150-350 mm
14,50
126 K16 6"-16"
150-400 mm
15,70
127 K20 6"-20"
150-500 mm
17,30

Instructions for K4 Katalog
Instructions for K6 Katalog
Instructions for K8-K12 Katalog
Instructions for K14-K20 Katalog
